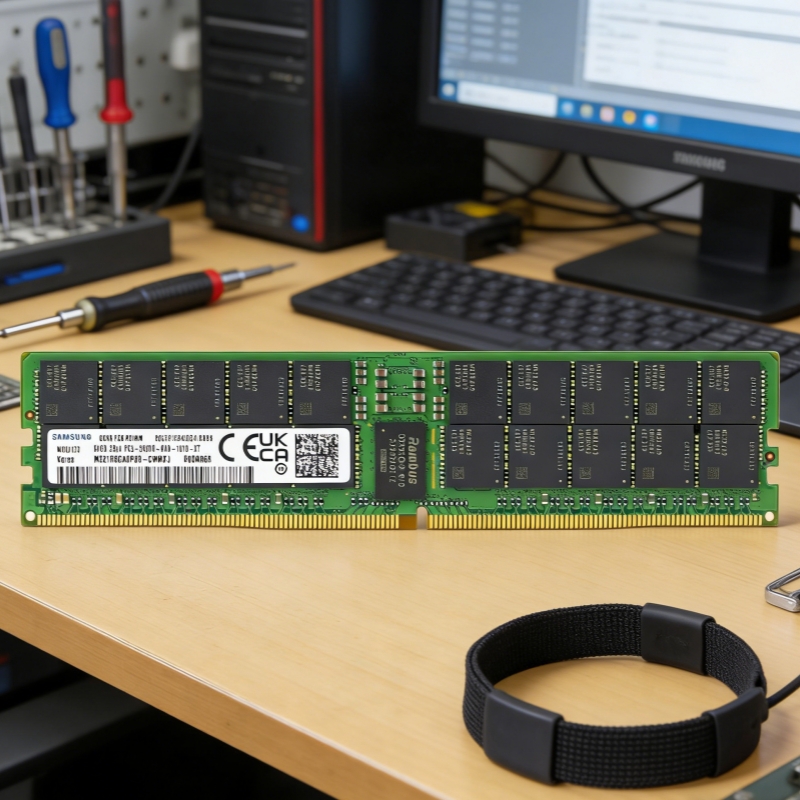

A 64GB DDR5 RDIMM can be a practical building block for enterprise servers, AI infrastructure, virtualisation hosts, and storage systems, but the capacity label alone is not enough to confirm suitability. The server platform, processor generation, memory-channel population, firmware, rank organisation, and RAS requirements all influence the final operating configuration. This guide explains how to qualify a Samsung M321R8GA0PB0-CWMCJ 64GB DDR5 RDIMM, or any equivalent quoted server-memory part number, before a volume purchase.

Confirm the exact part number first

Start with the full manufacturer part number on the module label, quotation, and data sheet. Check the capacity, DDR generation, registered-DIMM type, rated data rate, rank or organisation, voltage, ECC capability, temperature grade, and any revision suffix. Small changes in a suffix can indicate a different module organisation or qualification status even when the capacity is the same. Do not treat a reseller description as the primary specification. Ask for the current manufacturer data sheet and compare it with the approved server configuration. If the part is intended to replace installed memory, also record the existing module’s exact label and BIOS-reported inventory.

Use the server vendor’s population guide

The server vendor defines how memory channels and slots should be populated for a given processor and DIMM type. This guide determines maximum capacity, supported speed, and recommended placement order. A 64GB module may be fully supported in one platform but downclocked or restricted in another because of the CPU generation, number of DIMMs per channel, or rank configuration. Plan the complete population: number of CPUs, channels per CPU, target capacity per node, and growth path. Symmetric placement across channels is often important for predictable bandwidth and performance.

Understand why RDIMM is used in servers

A registered DIMM includes a register that helps buffer command and address communication between the memory controller and the DRAM devices. This design supports the signal integrity and scalability needed in server-class platforms. It does not mean every server can use any RDIMM. The motherboard and CPU must explicitly support registered memory, and the module must be on the applicable qualification list or be validated through a controlled test. RDIMMs are not interchangeable with UDIMMs, and RDIMM and LRDIMM populations should not be mixed unless the server vendor documents that configuration as supported.

Size memory around the actual workload

For AI servers, system DRAM supports operating-system processes, CPU preprocessing, data staging, orchestration, storage clients, monitoring, and application caches. GPU memory is separate, so calculate host-memory demand independently. For virtualisation, include virtual-machine reservations, hypervisor overhead, and failover capacity. For databases and storage software, include buffer pools, metadata, replication, and rebuild headroom. A 64GB module can make it easier to reach a balanced multi-channel configuration, but the correct number of modules depends on the required usable memory and the platform’s recommended population pattern.

Validate speed and bandwidth after installation

DDR5 module speed is subject to platform rules. Adding more DIMMs per channel, using larger capacities, or combining different organisations can change the operating point. After installation, check the BIOS or management controller inventory to confirm total capacity, channel placement, and effective speed. Compare the reported value with the server vendor’s guide, not only with the maximum speed printed in a product listing. For performance-sensitive workloads, test memory bandwidth and application behaviour using the intended CPU and software environment. An even, qualified population can outperform an unbalanced collection of nominally faster modules.

Include ECC and RAS in acceptance testing

Server memory can support error-correction and platform RAS features, but their operation depends on the CPU, motherboard, BIOS, and operating-system monitoring path. During acceptance, inspect event logs for configuration warnings and correctable memory errors. Run the organisation’s approved burn-in or diagnostic routine, then retain the memory inventory and firmware record with the asset documentation. Establish an alert process for increasing correctable-error counts and a replacement procedure that identifies the physical DIMM location. Reliability is a system process, not merely a feature on a memory-module label.

Procurement and deployment checklist

• Match the full module part number and specification with the server vendor’s current guide.
• Plan symmetric channel population and the future capacity path before ordering.
• Do not mix RDIMM, LRDIMM, UDIMM, or unqualified module organisations in production.
• Verify capacity, effective speed, and error logs after installation.
• Retain module labels, serial numbers, test results, and warranty records with the server asset.

How to handle substitutions

If the quoted part is unavailable, require a written proposed substitute with the complete part number and data sheet. Re-run the compatibility check; do not approve a substitution solely because it has the same 64GB capacity. Validate one sample in the target server, including a cold boot, memory inventory, diagnostics, and normal workload test. Only then release a volume order or standardise the substitute for future repairs.

Conclusion

Samsung M321R8GA0PB0-CWMCJ 64GB DDR5 RDIMM should be selected through an exact-platform qualification process. When the part number, population guide, effective speed, and acceptance tests all align, a 64GB RDIMM can be a dependable building block for scalable server memory. Topstar can provide a quotation for the requested part number, while final compatibility must be confirmed against the server manufacturer’s current documentation.
